This article explains how to use Divide Domain² and Isotrim to divide surfaces and domain² ranges.

Divide Domain²1
Divide Domain²2

On the Grasshopper, Divide Domain² is represented by either of the two above.

Isotrim1
Isotrim2

On the Grasshopper, Divide Domain² is represented by either of the two above.


↑Youtube Channel

Divide Domain²

Divide Domain² allows you to divide the domain² of a range or surface.

divide
Click to Zoom

The first step is to divide the domain² range created by Construct Domain² (Dom²).

In this case, we have 10 in the u-direction and 20 in the v-direction.

Connect Construct Domain²(Dom²) to the Divide Domain²(I).

After that, input the numerical values for how much to divide in that direction to the Divide Domain²(U and V).

In this case, we input 5 to the U and 4 to the V.

The domain² was then divided by 5 in the U direction and 4 in the V direction.

Click to Zoom

Then, there are 5 sets of 4 identical u’s each.

Conversely, v has 5 identical items and 4 sets.

The reason for 0 To 2 and so on is that the original u-direction was 10 and it was divided by 5, which is why it is shown as 0 To 2 or 2 To 4.

surface

Next, instead of Construct Domain² (Dom²), let’s connect the surface as shown in the image above.

divided as well
Click to Zoom

This time, we store the surface from earlier in Surface.

Then, the domain² was split on the surface face as well.

However, the surface plane has not yet been split, since the domain has only been split in this state.

To split a surface face, you need to use Isotrim.

.

Isotrim

Isotrim can be used to split a surface.

Isotrim

Input the surface to be divided into the Isotrim(S).

Input the Divide Domain², which is the information of the domain² to be divided, to the Isotrim(D).

The surface is now divided

The surface is now divided as shown here.

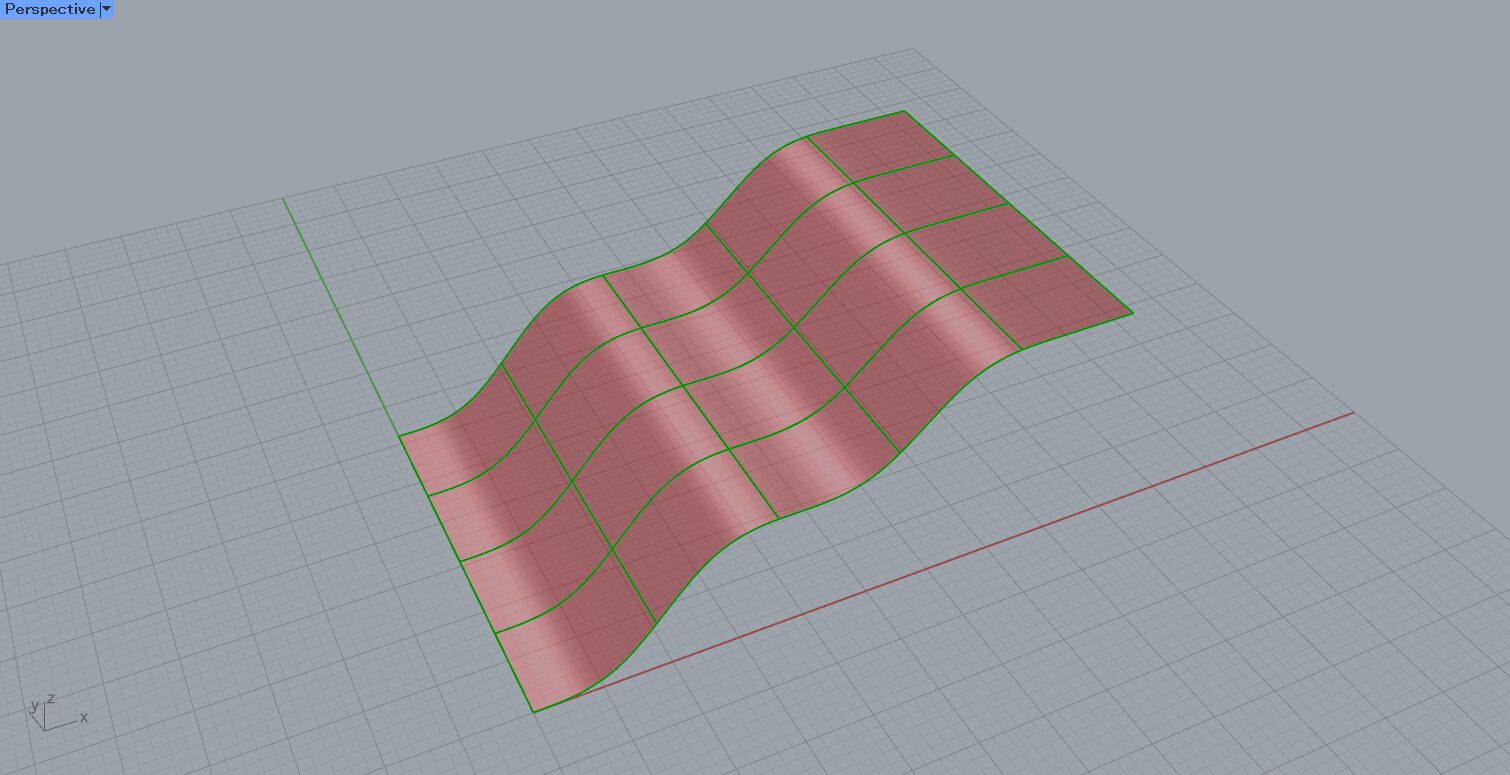

highlighted the border

For clarity, we have highlighted the border.

As you can see, by combining Divide Domain² and Isotrim, you can divide a surface.
