In this article, we introduce how to create cylinders hanging from ceiling in Grasshopper.


↑Youtube Channel

Model Image


The above 2 images show the overall shape of the model.

rendering

The images above show the final rendering.

For more details, please check the component images or download the data below.

Click here to download the Grasshopper file

Please refer to the Terms of Use regarding the use of downloadable data.

Grasshopper recipe

1: Rectangle 2: Surface 3: Divide Domain² 4: Isotrim 5: Unit Z 6: Move 7: Flip Matrix 8: Curve 9: Area 10: Circle 11: Division 12: Series 13: Graph Mapper 14: Bounds 15: Construct Domain 16: Remap Numbers 17: Scale 18: List Item 19: Surface 20: Merge 21: Loft 22: Boolean Toggle 23: Loft Options 24: Brep Join 25: Deconstruct Brep 26: Length 27: Project 28: Line 29: Brep | Line 30: Trim Tree 31: Pipe

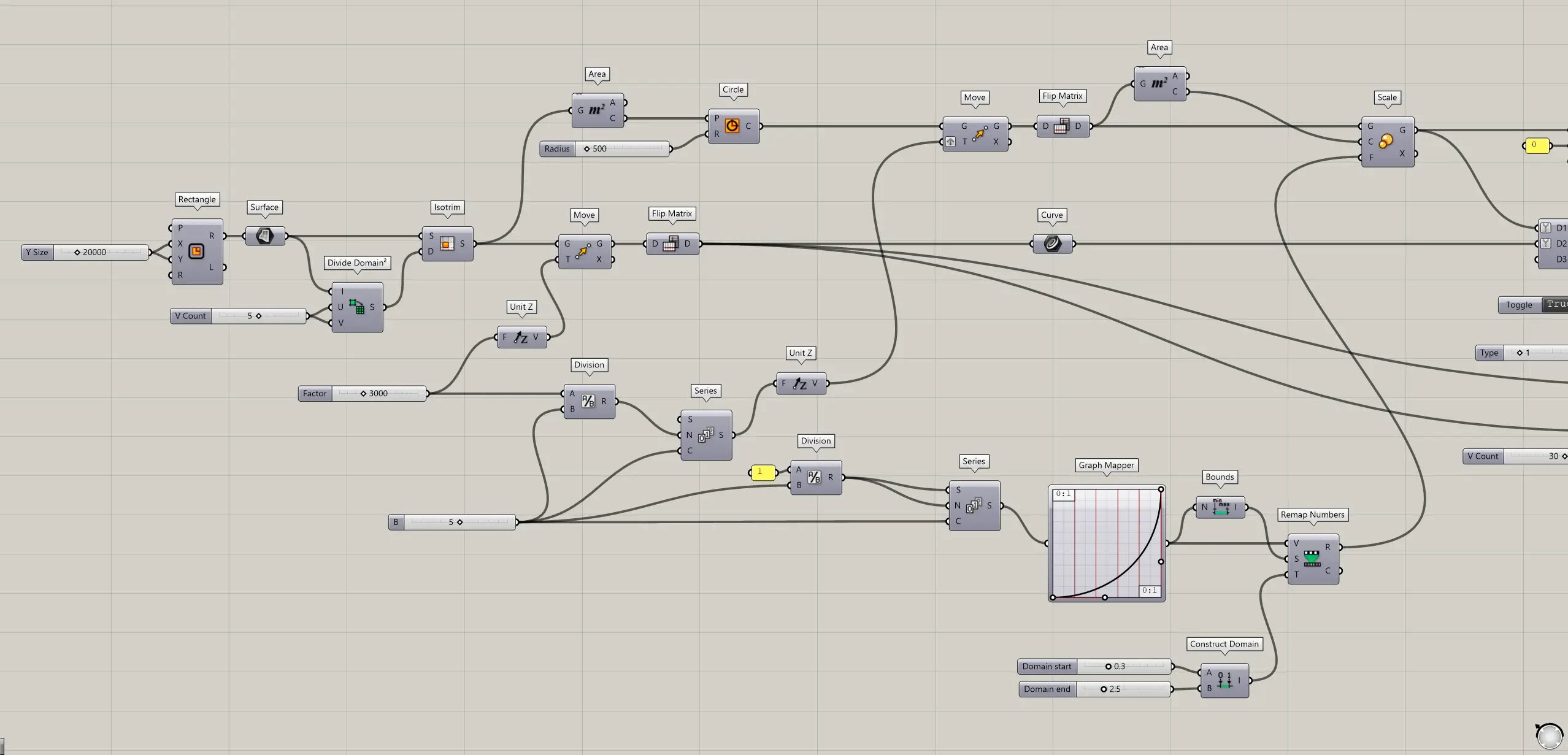

component1

Click to zoom

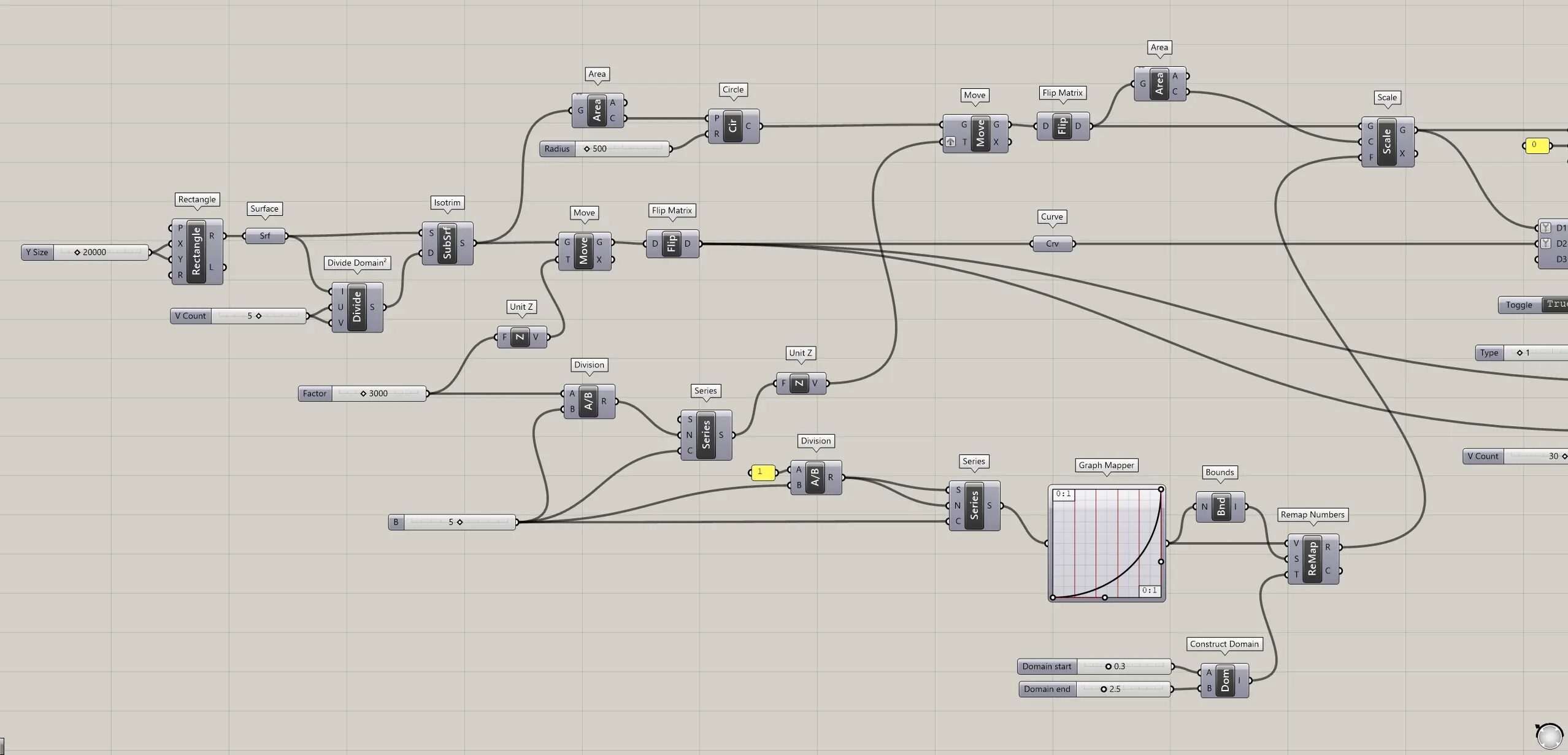

component2

Click to zoom


component3

Click to zoom

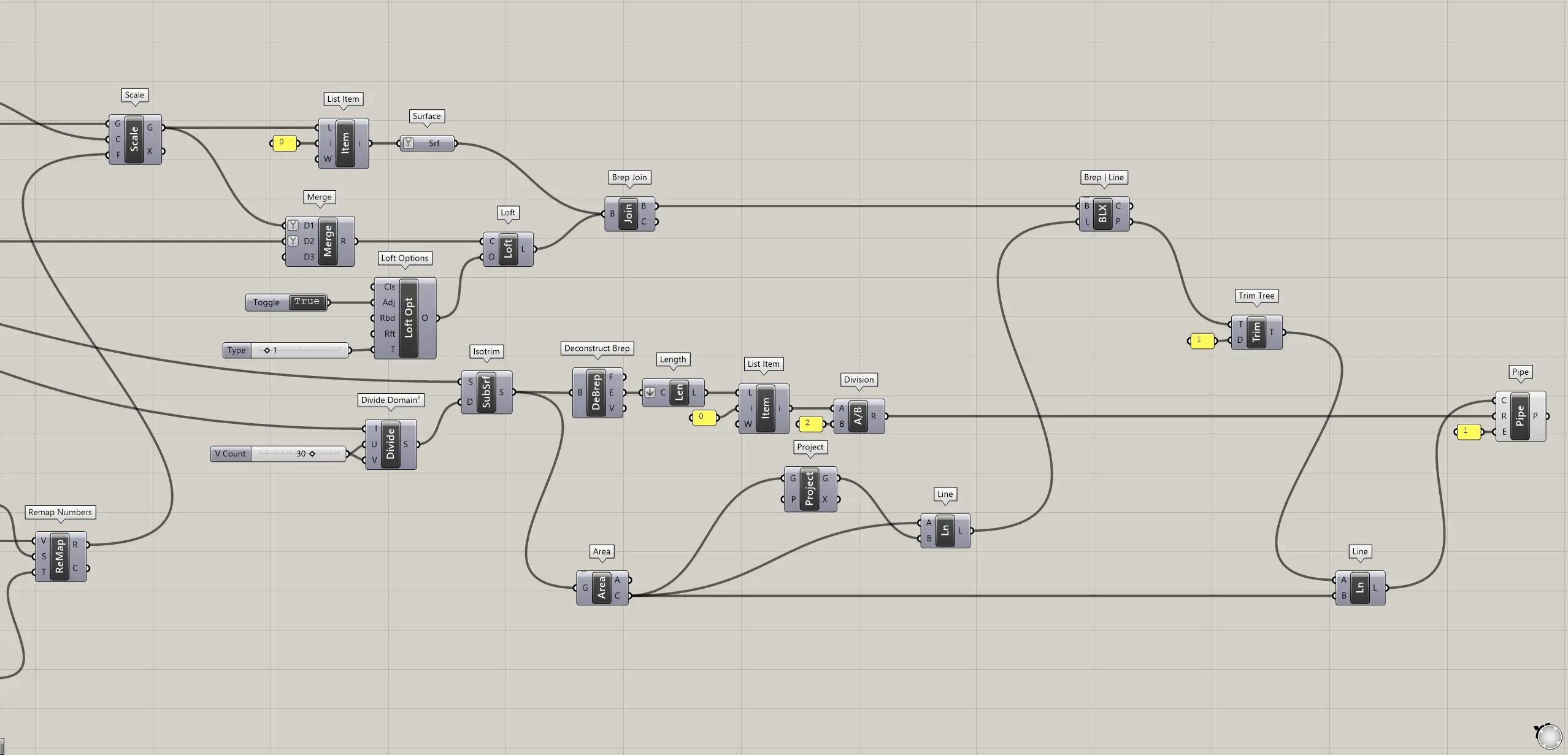

component4

Click to zoom

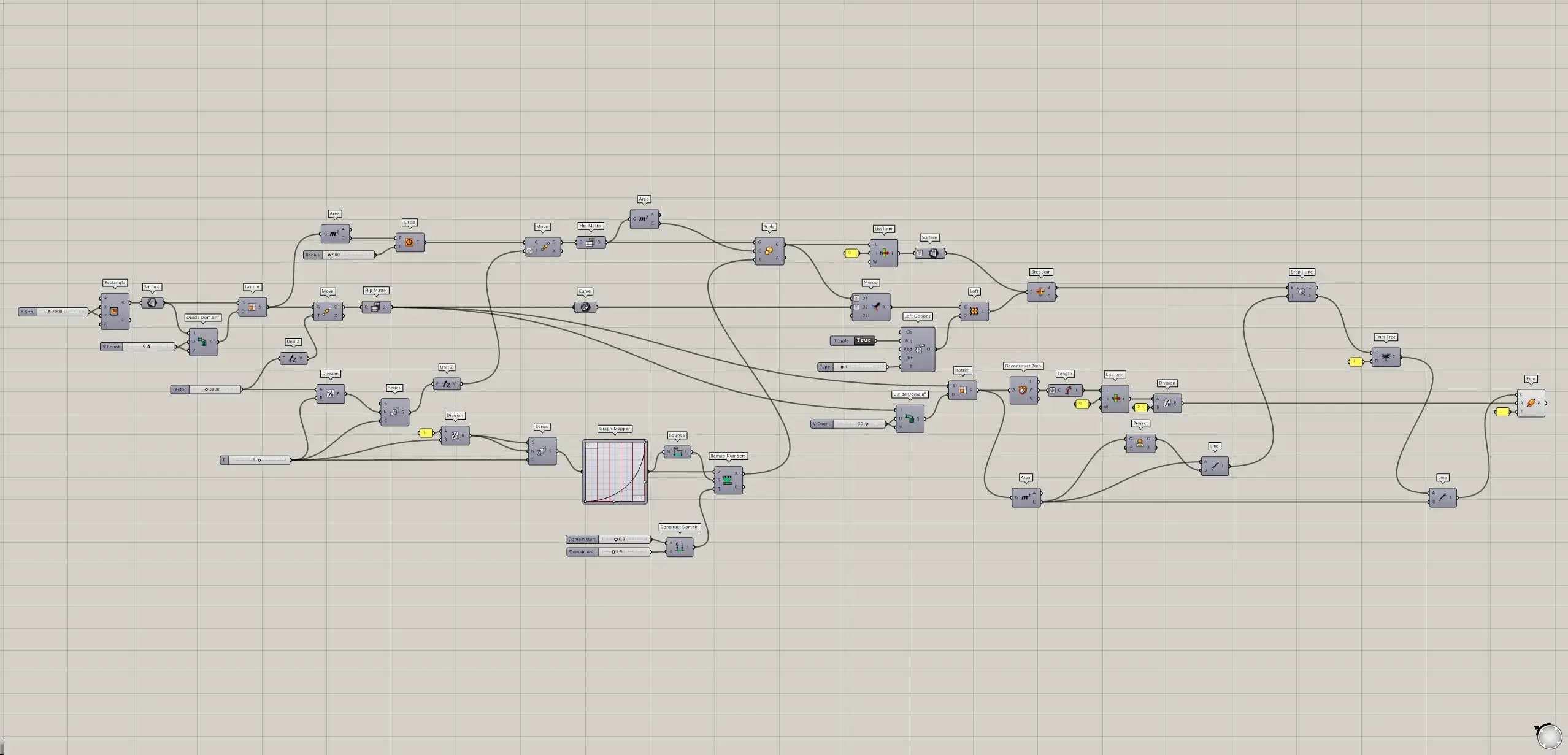

component5

Click to zoom

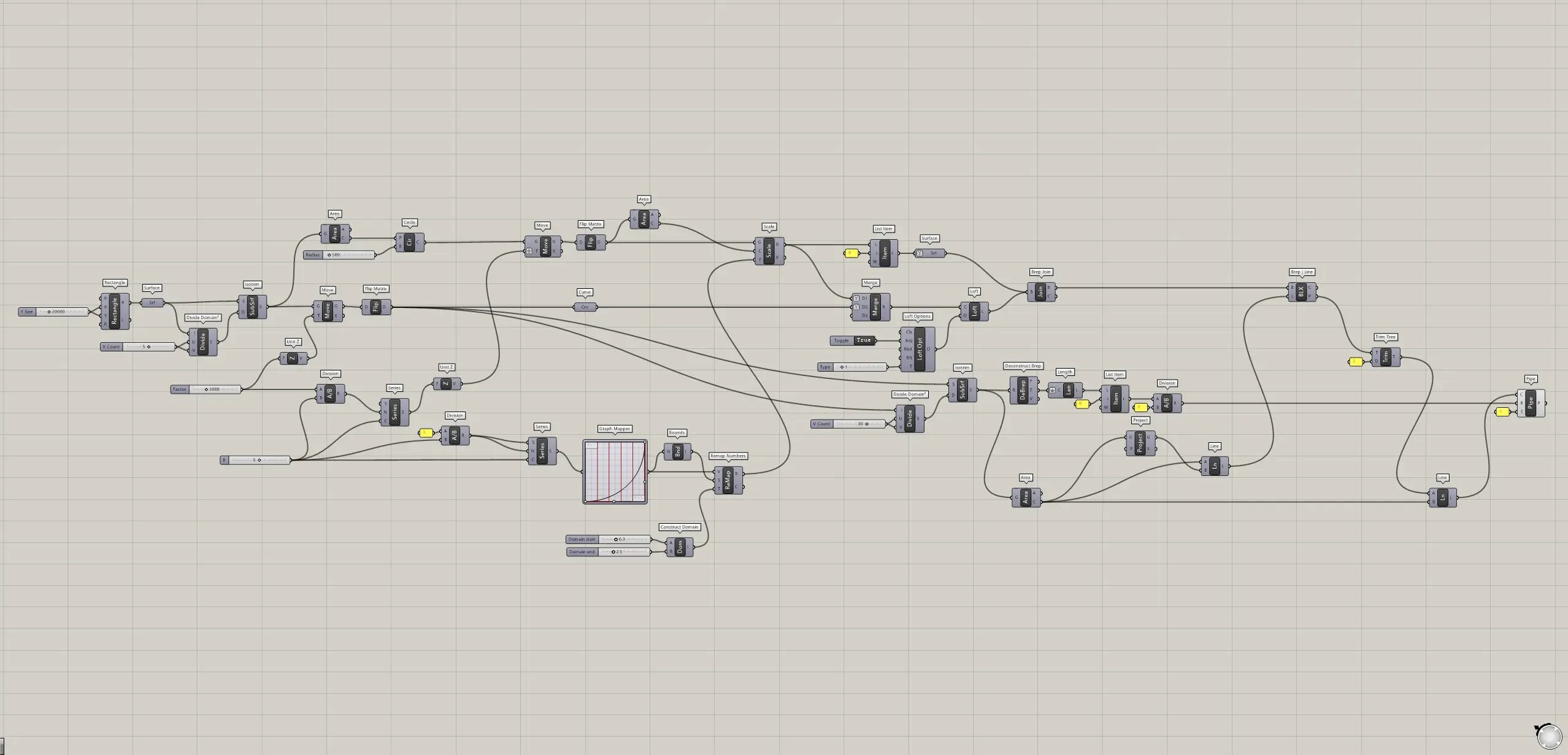

component6

Click to zoom
