In this article, we introduce exterior design that looks like the model pulled outward in Grasshopper.
Model Image

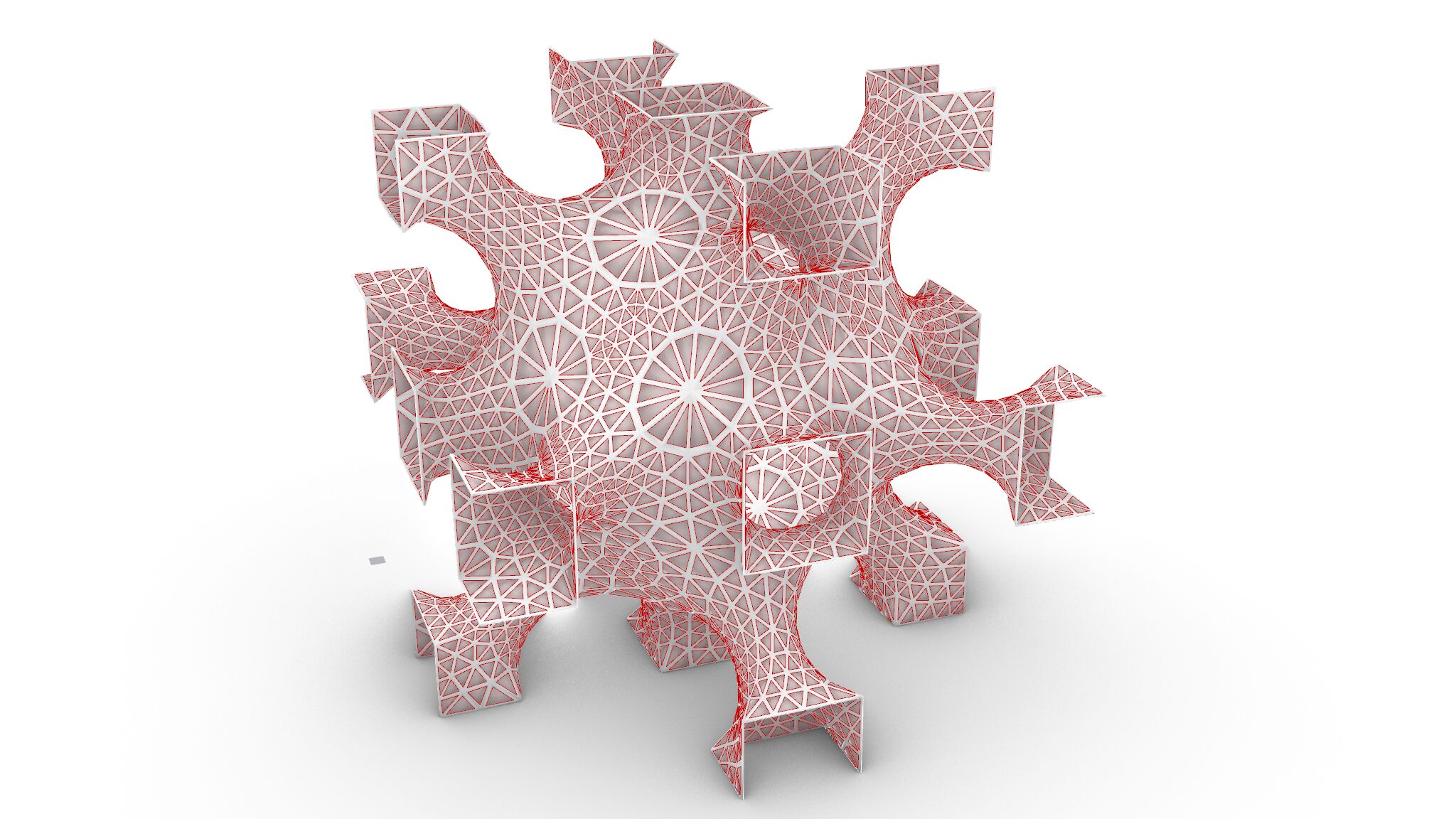

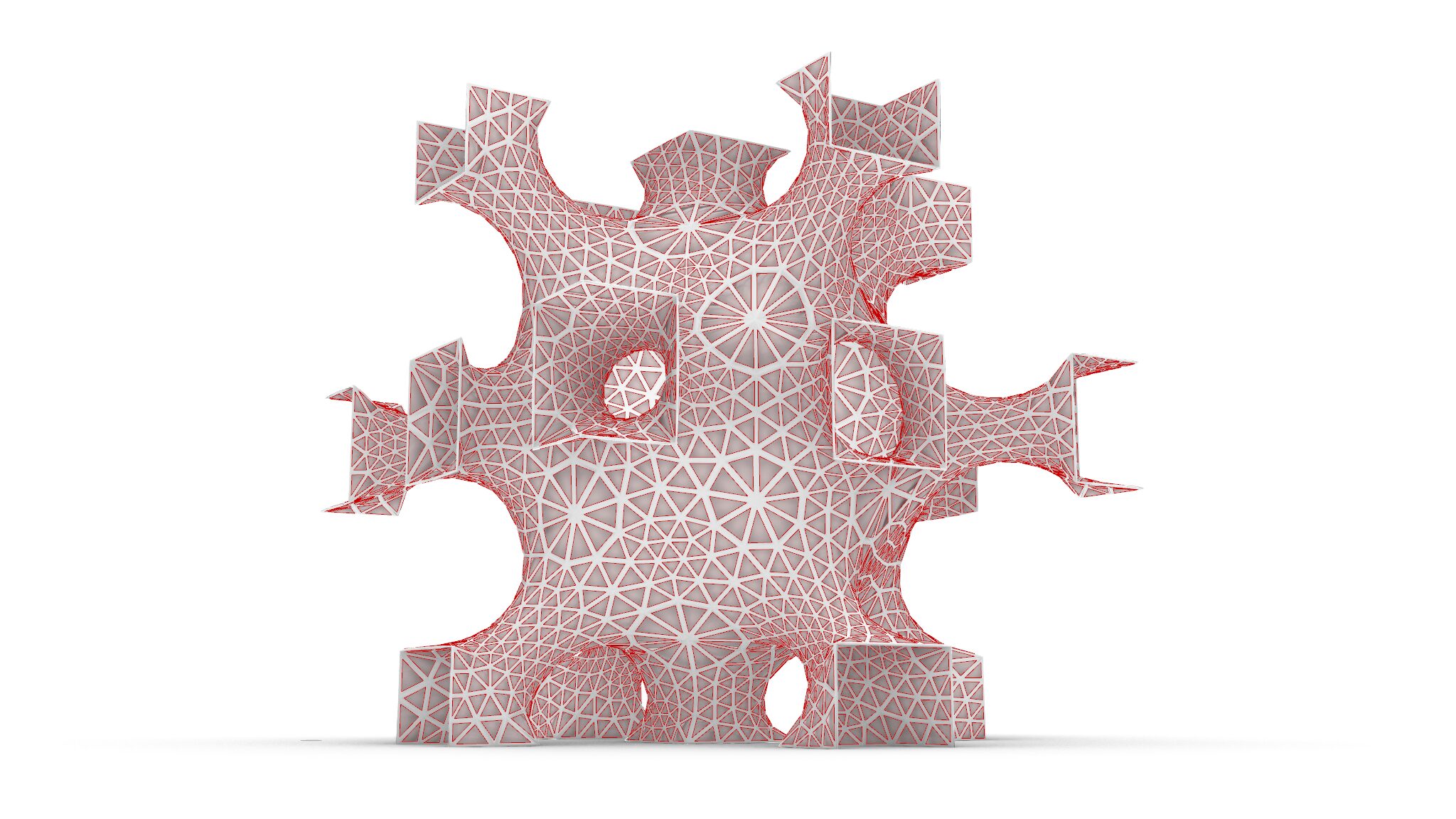

The above 3 images show the overall shape of the model.
The images above show the final rendering.

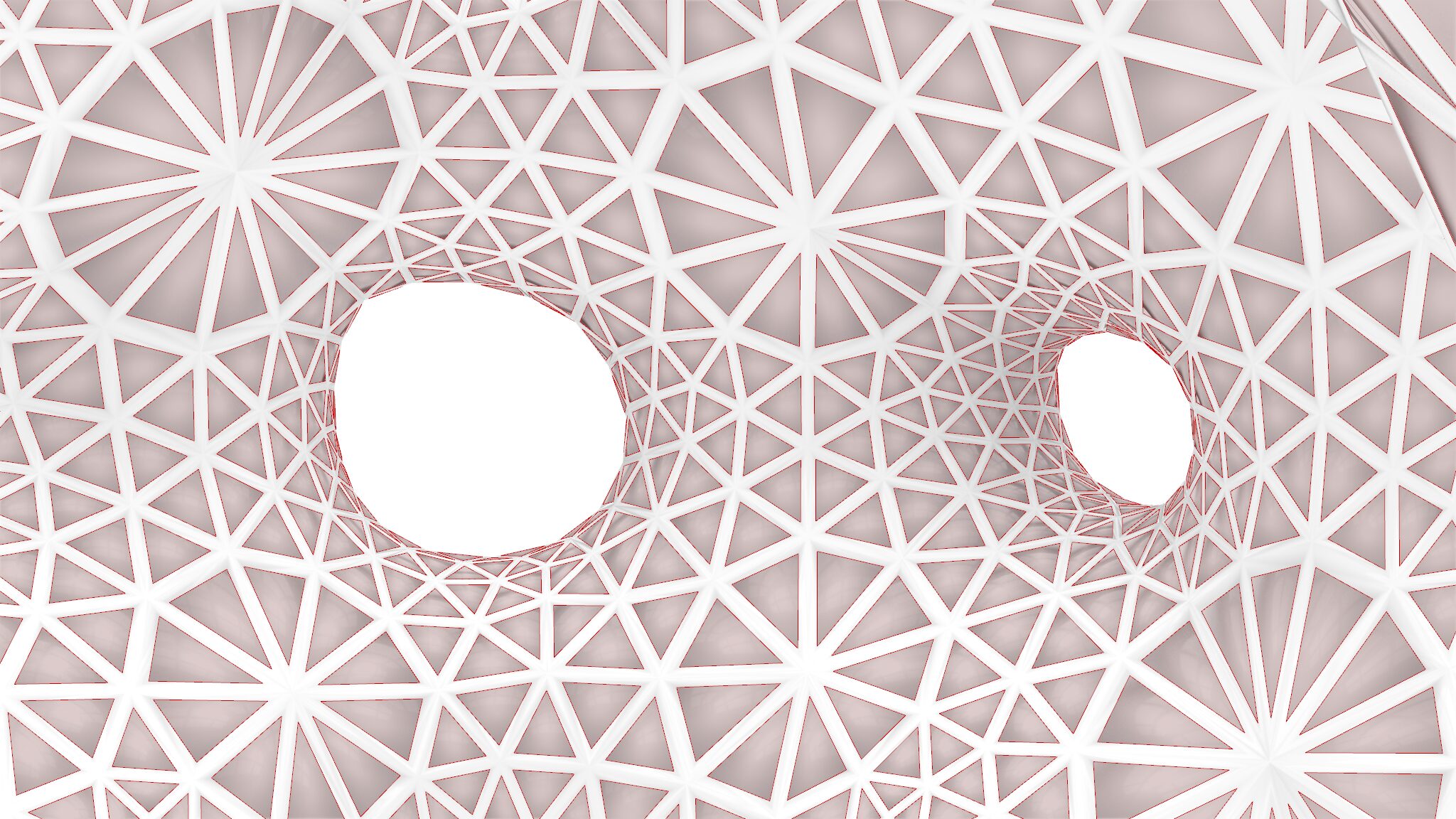

For more details, please check the component images or download the data below.
Click here to download the Grasshopper file
Please refer to the Terms of Use regarding the use of downloadable data.
The last three components use the Weaverbird plugin.
To use them fully, please install the Weaverbird plugin from Package Manager or the link below.
Click here to download the Weaverbird plugin
Grasshopper recipe
1: Rectangle 2: Box Rectangle 3: Volume 4: Deconstruct Brep 5: Area 6: Curve Middle 7: Line 8: Merge 9: Perp Frames 10: Negative 11: Construct Domain 12: Loft 13: Cap Holes 14: Solid Union 15: Solid Intersection 16: Brep Closest Point 17: Round 18: Equality 19: Dispatch 20: Surface 21: Brep Join 22: TriRemesh 23: Refine 24: Show 25: NakedVertices 26: Mesh Edges 27: Point 28: Line 29: Anchor 30: Length(Line) 31: BouncySolver 32: Mesh 33: Clean Tree 34: Weaverbird’s Mesh Window 35: Weaverbird’s Picture Frame 36: Weaverbird’s Mesh Thicken
