In this article, we introduce how to create a facade by rotating rectangles in Grasshopper.
Model Image
The above 3 images show the overall shape of the model.
The images above show the final rendering.
For more details, please check the component images or download the data below.
Click here to download the Grasshopper file
Please refer to the Terms of Use regarding the use of downloadable data.
Grasshopper recipe

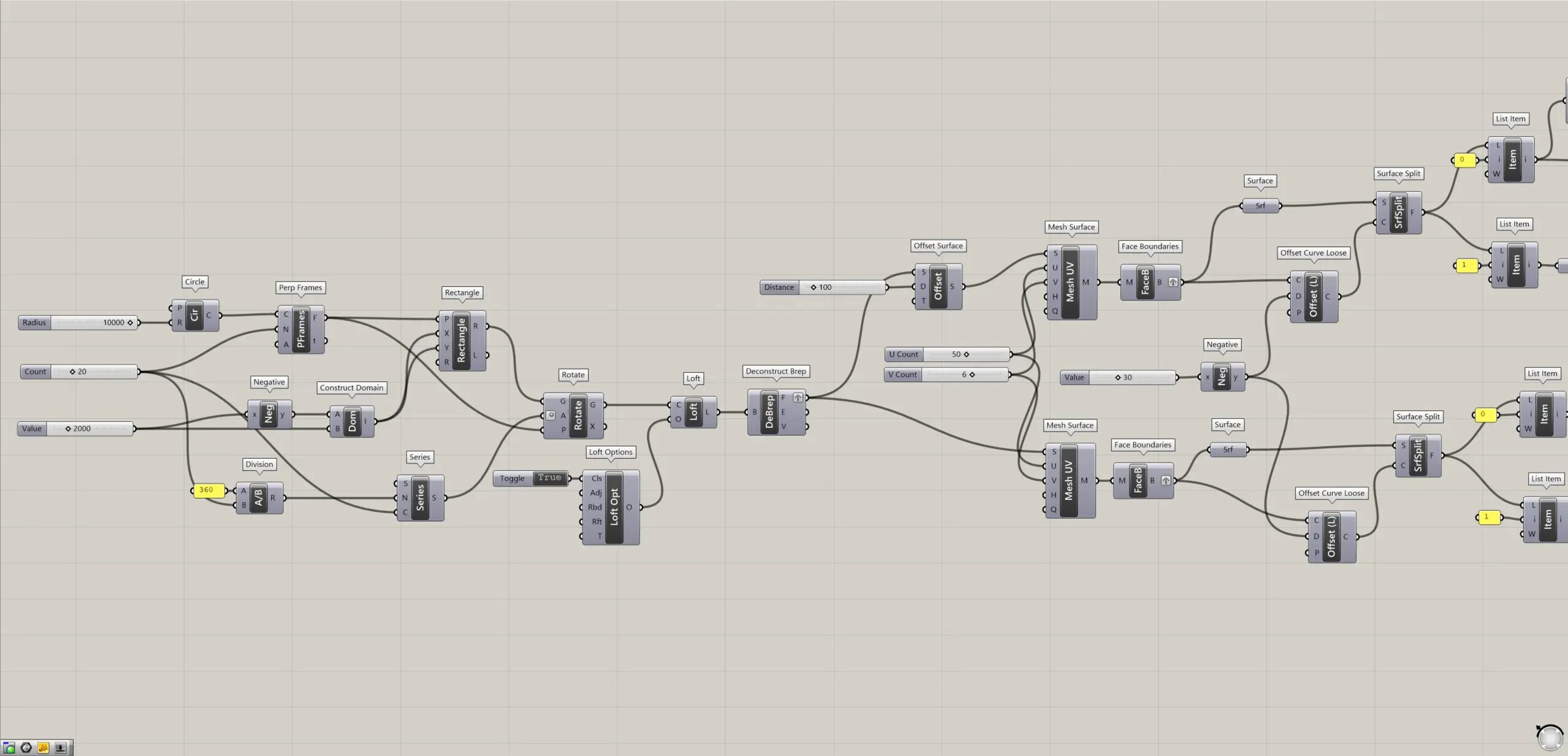

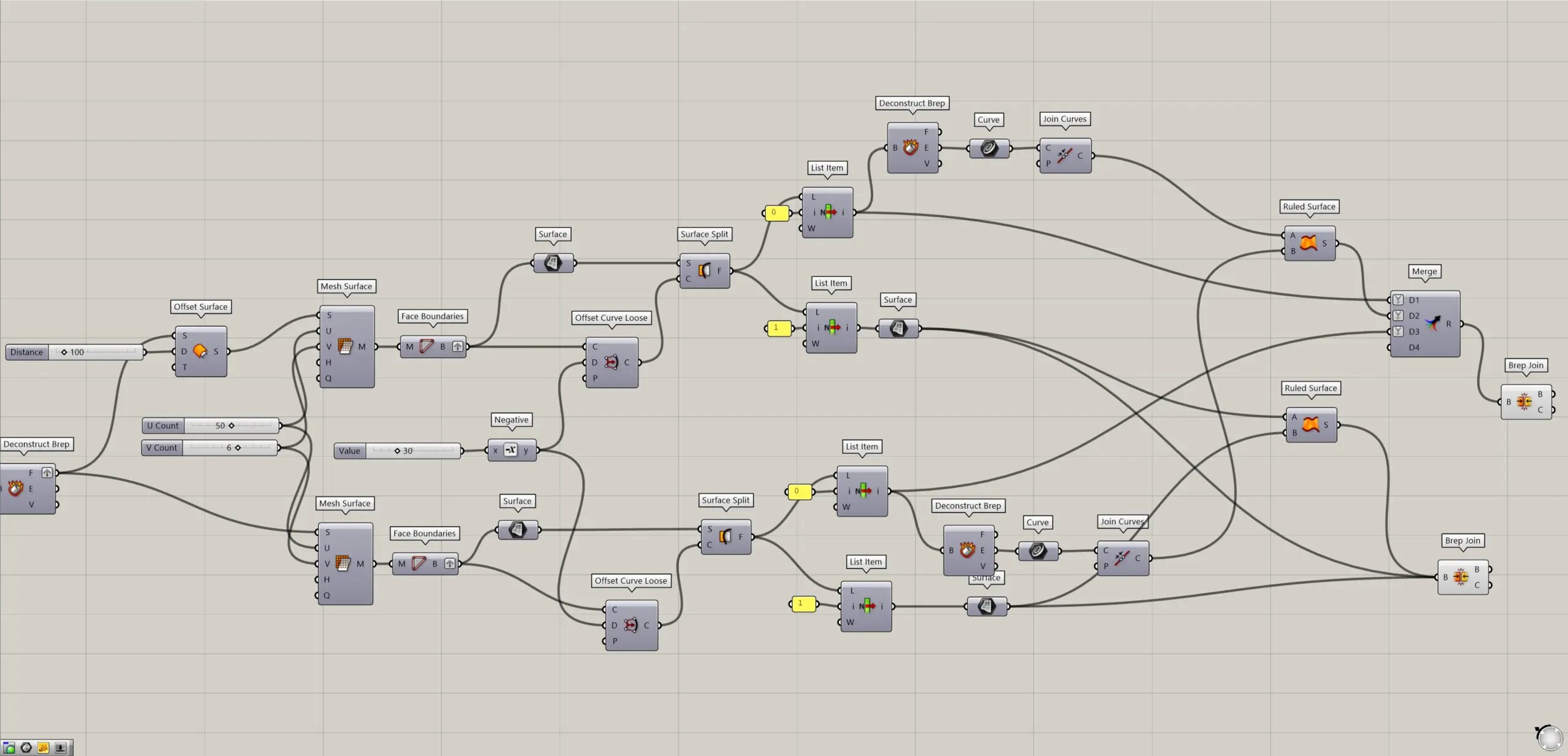

1: Circle 2: Perp Frames 3: Negative 4: Construct Domain 5: Rectangle 6: Division 7: Series 8: Rotate 9: Loft 10: Loft Options 11: Deconstruct Brep 12: Offset Surface 13: Mesh Surface 14: Face Boundaries 15: Surface 16: Offset Curve Loose 17: Surface Split 18: List Item 19: Curve 20: Join Curves 21: Ruled Surface 22: Merge 23: Brep Join
