[Grasshopper] How to create screws and bolts [Data download available]

grasshopper EN

In this article, we introduce how to create screws and bolts in Grasshopper.


↑Youtube Channel

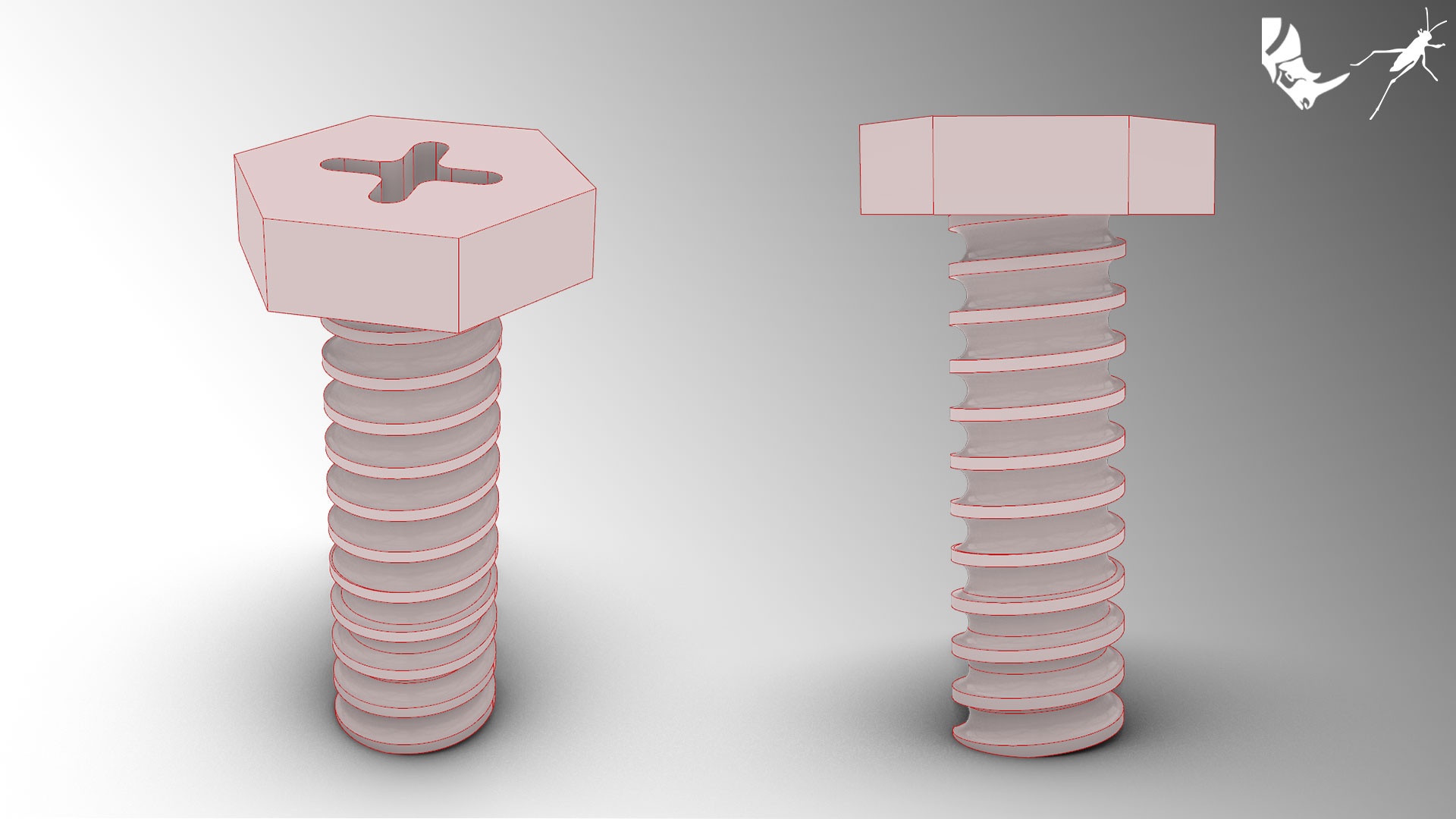

Model Image


The above 2 images show the overall shape of the model.

最終レンダリング

The images above show the final rendering.

For more details, please check the component images or download the data below.

Click here to download the Grasshopper file

Please refer to the Terms of Use regarding the use of downloadable data.

Grasshopper recipe

1: Cylinder 2: Cap Holes 3: Volume 4: Scale NU 5: Subtraction 6: Divide Surface 7: Flip Matrix 8: Series 9: Duplicate Data 10: List Item 11: Deconstruct 12: Round 13: Sort List 14: Equality 15: Dispatch 16: Point 17: Merge 18: Interpolate 19: Pipe 20: Solid Differencce 21: Construct Point 22: Polygon 23: Surface 24: Unit Z 25: Extrude 26: Is Planar 27: Negative 28: Construct Domain 29: Rectangle 30: Region Union 31: Fillet 32: Surface 33: Move 34: Solid Union


component1

Click to zoom

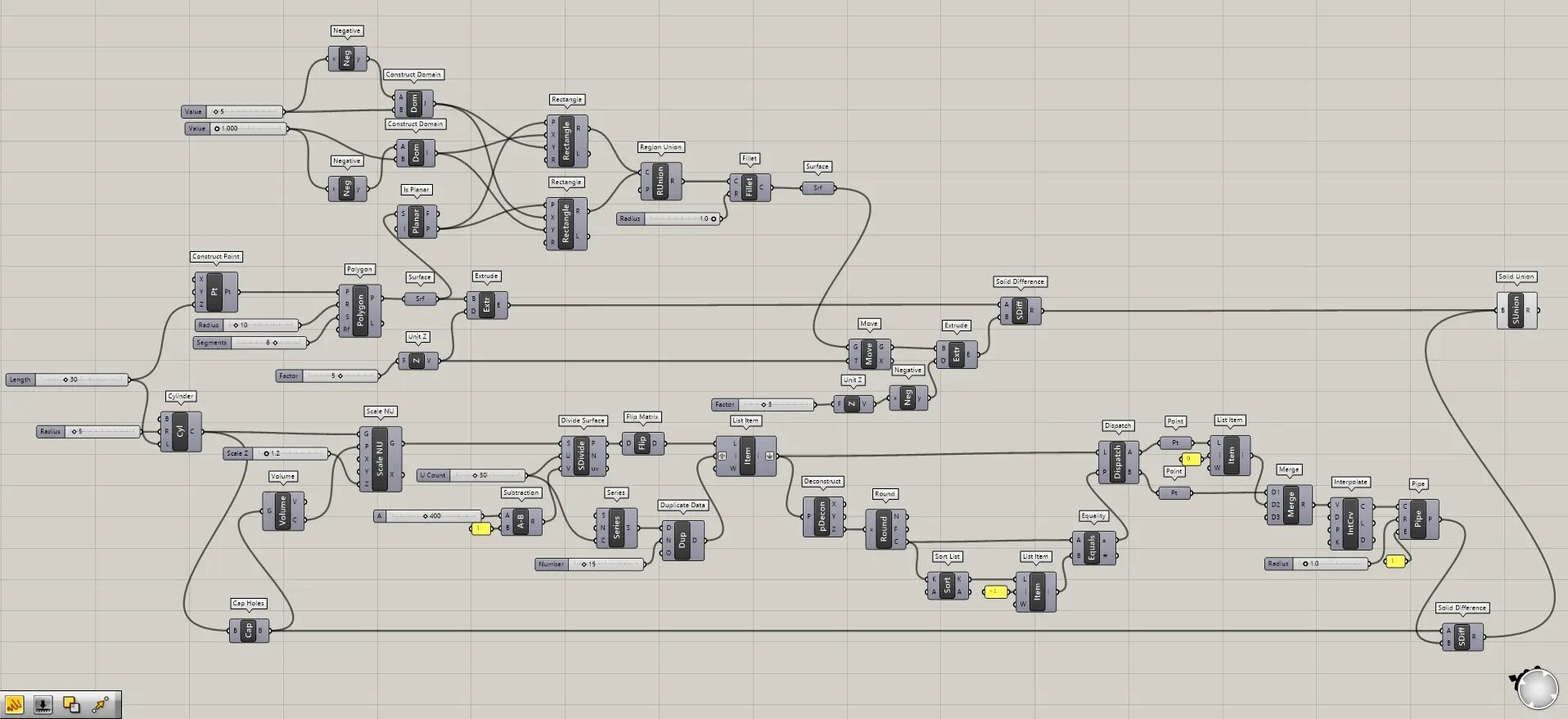

component2

Click to zoom
