[Grasshopper] Undulating roof and delicate grids extending downward [Data download available]

In this article, we will learn how to create Undulating roof and delicate grids extending downward in Grasshopper.

Video

Model Images

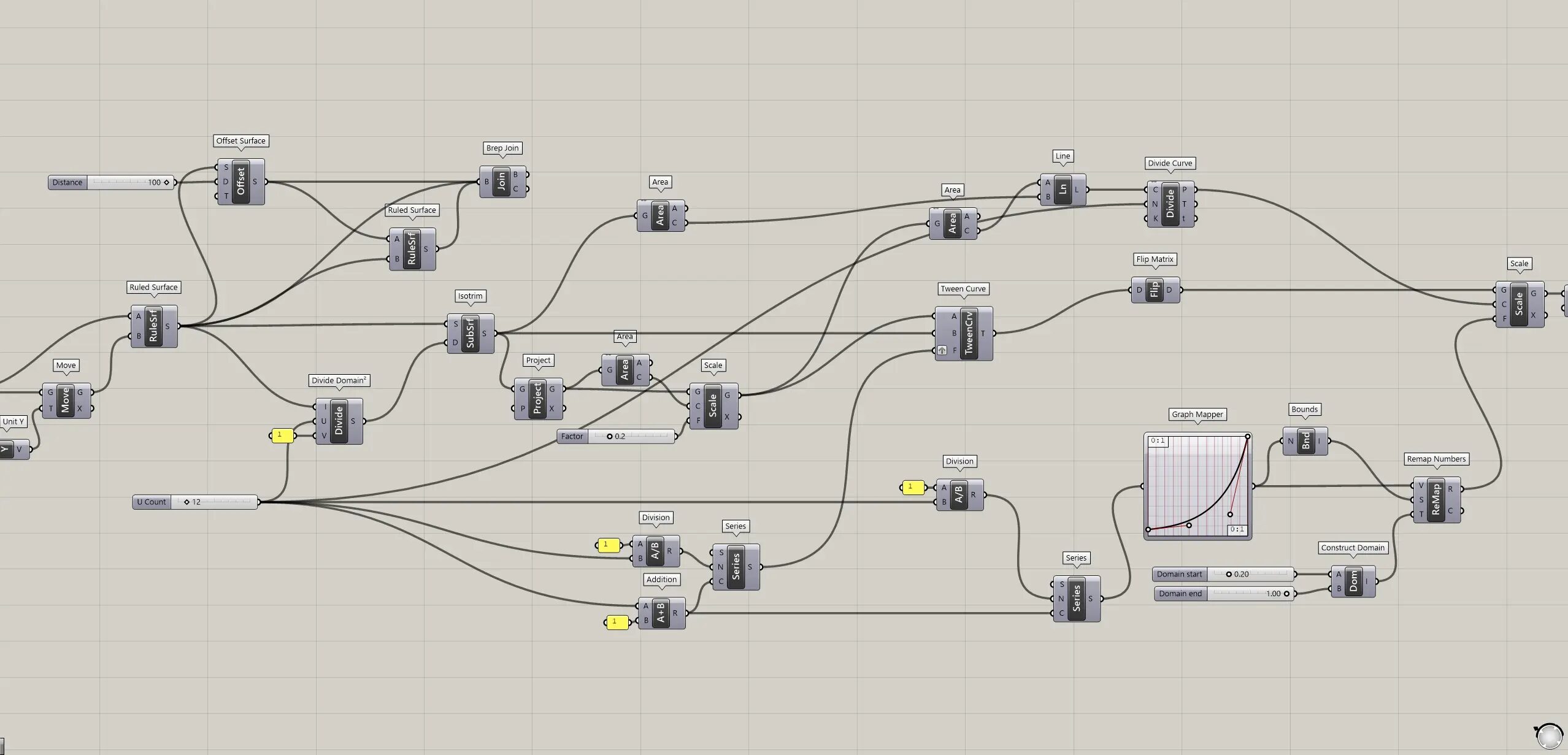

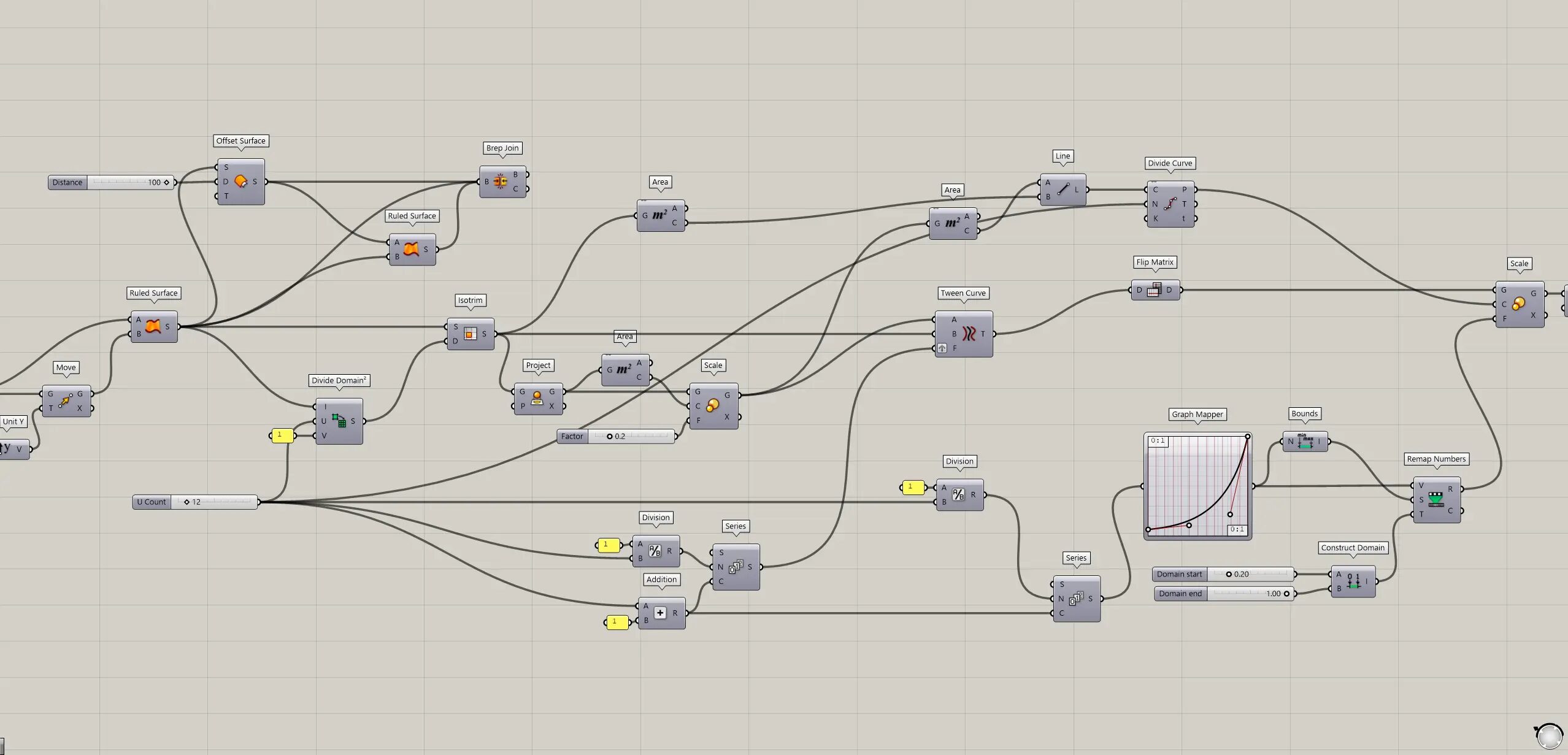

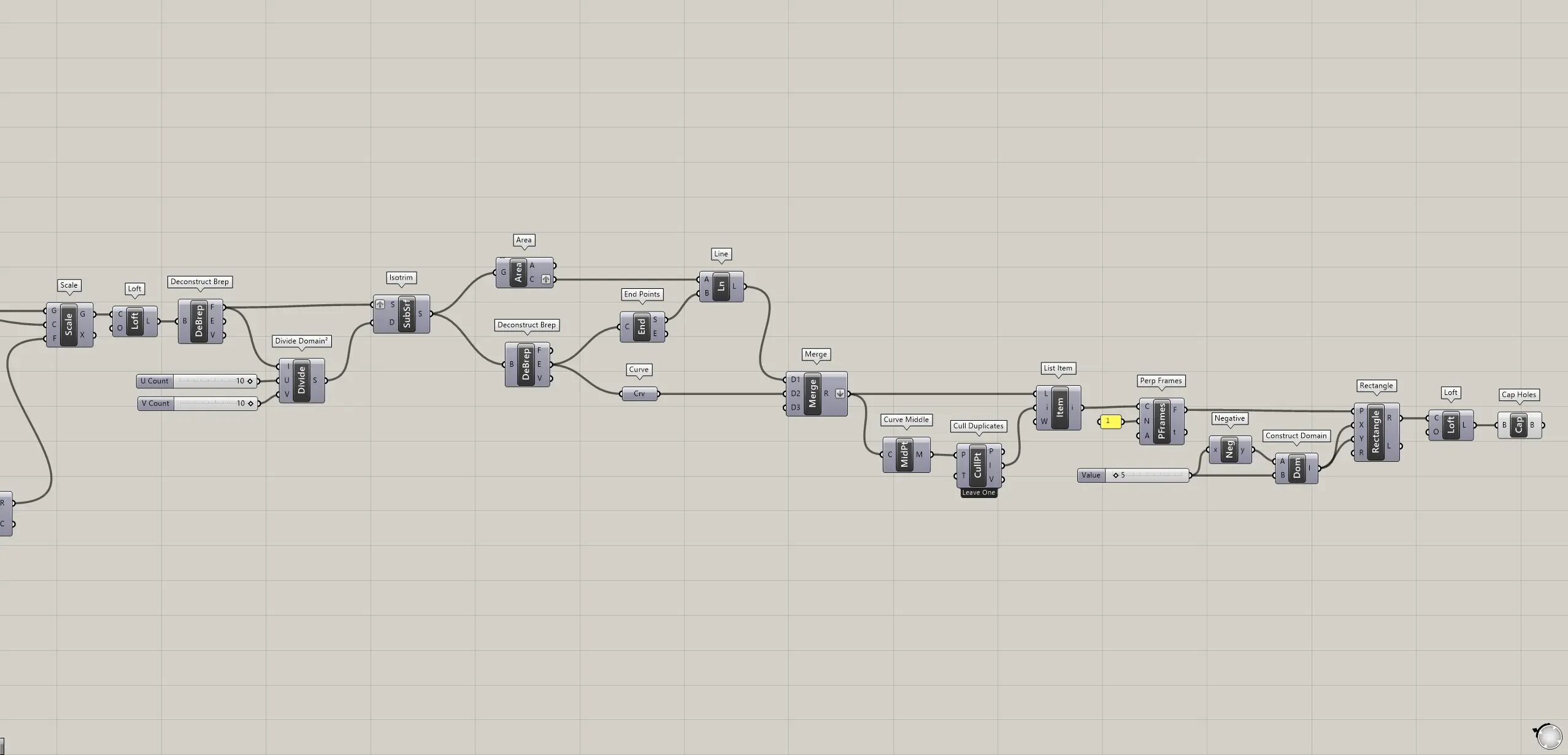

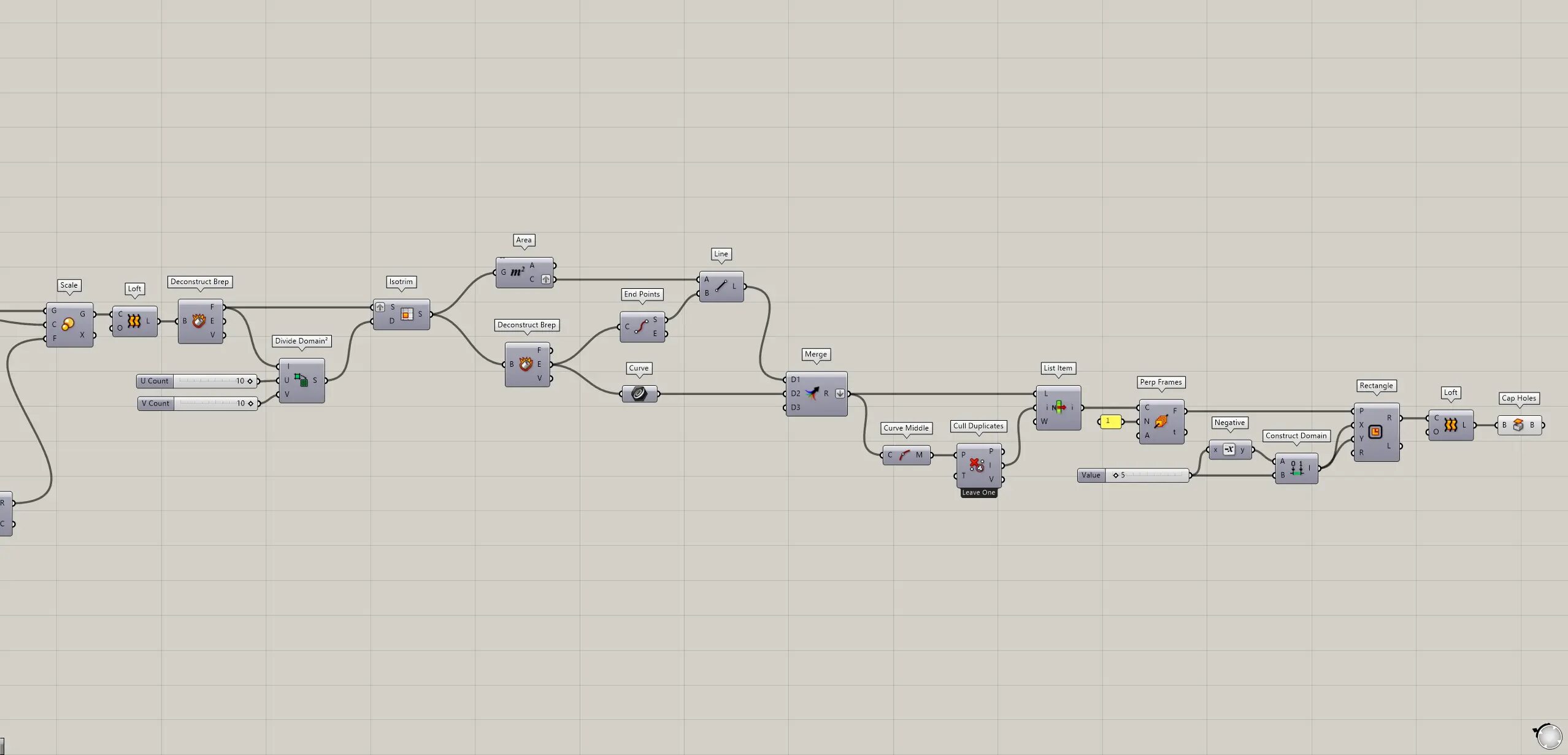

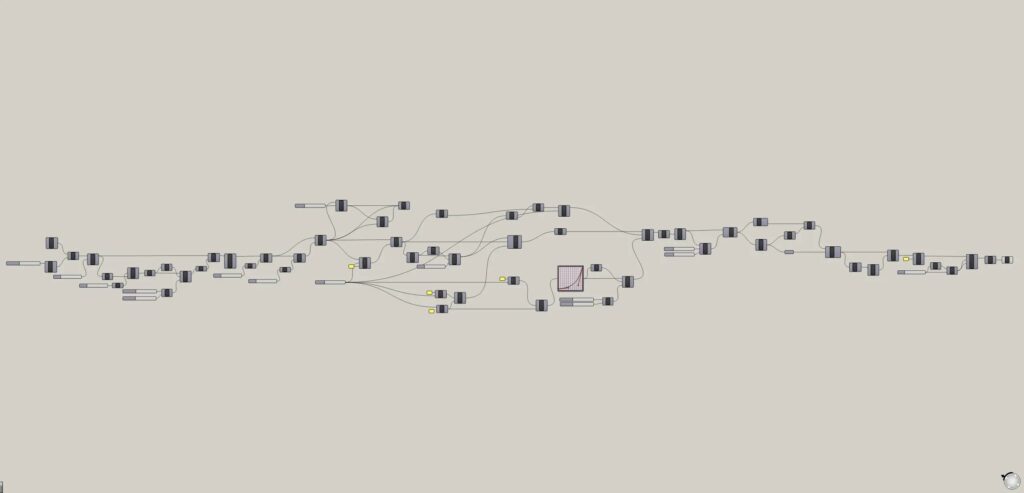

The top three images are from Grasshopper.

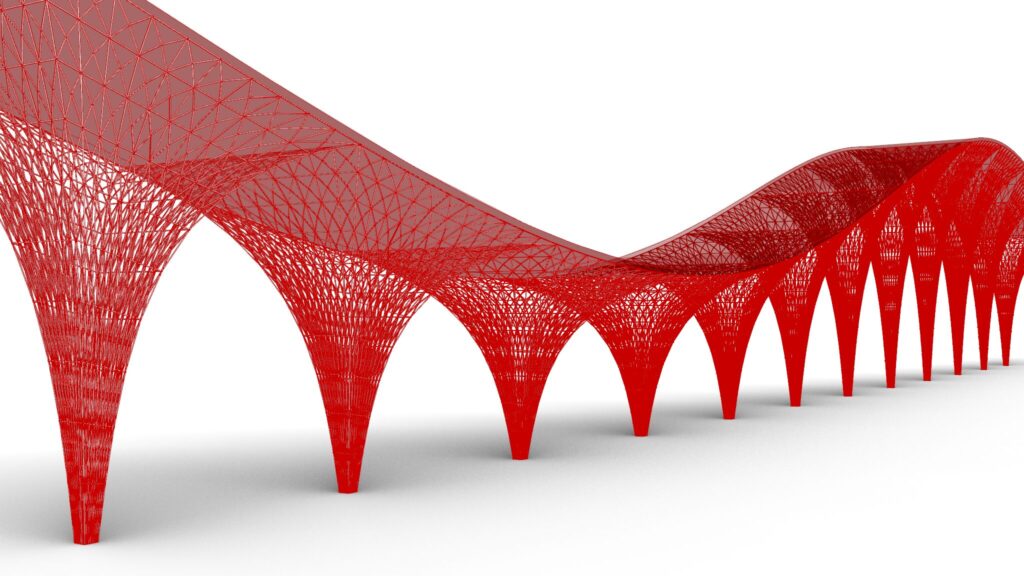

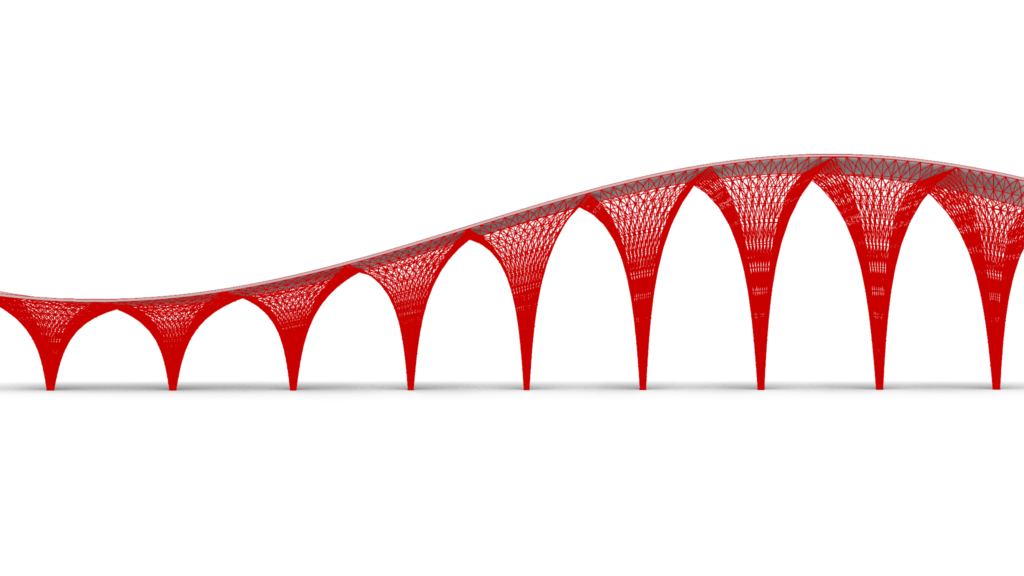

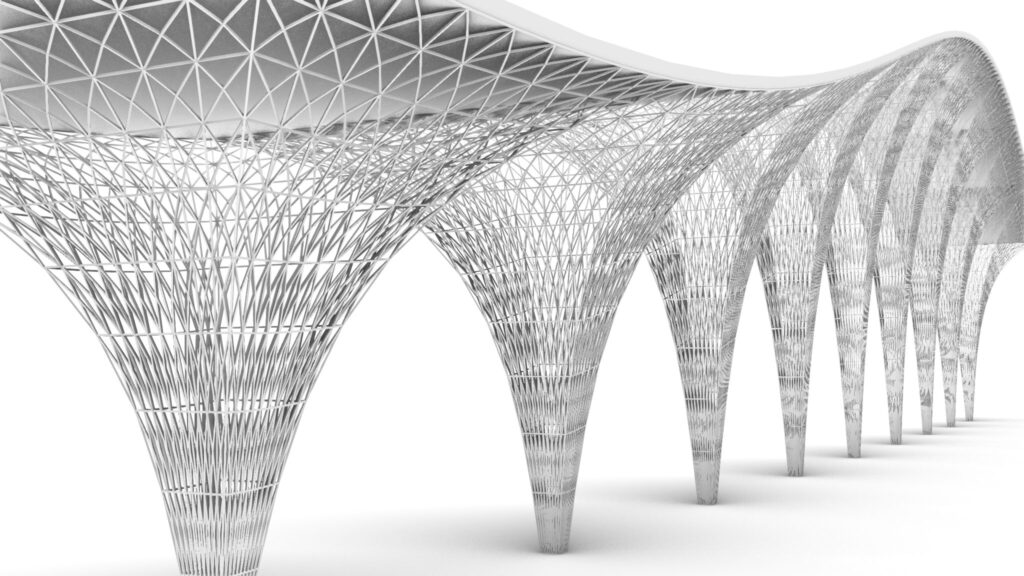

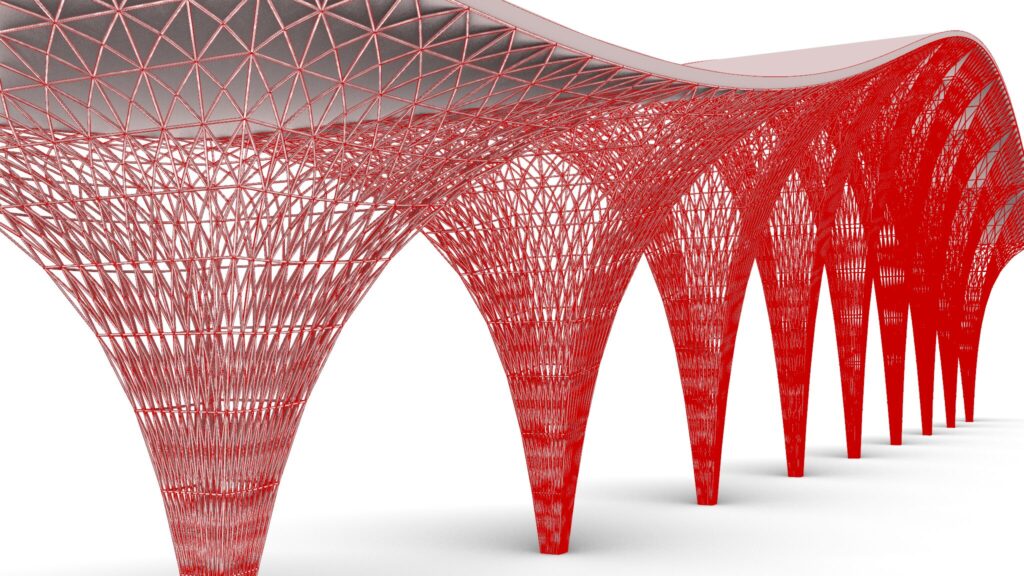

The top three images show the model exported on Rhinoceros.

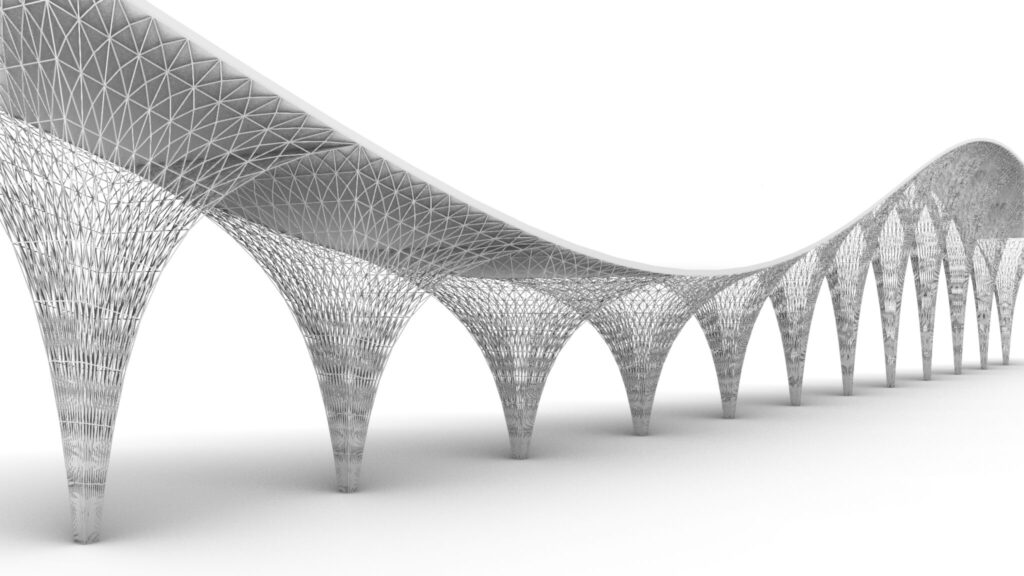

The image above shows the final rendering.

Due to the amount of programming, we will not provide a detailed explanation at this time.

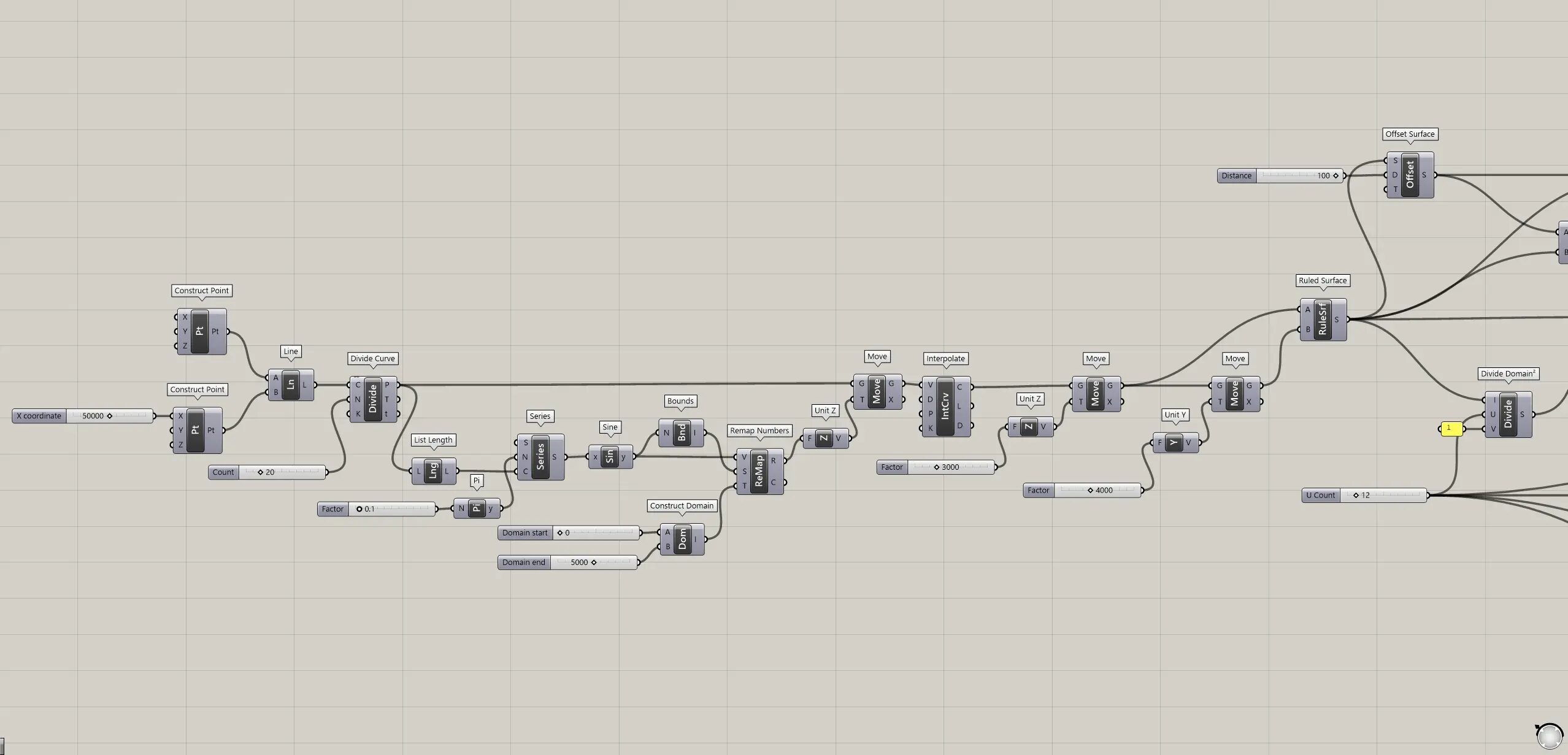

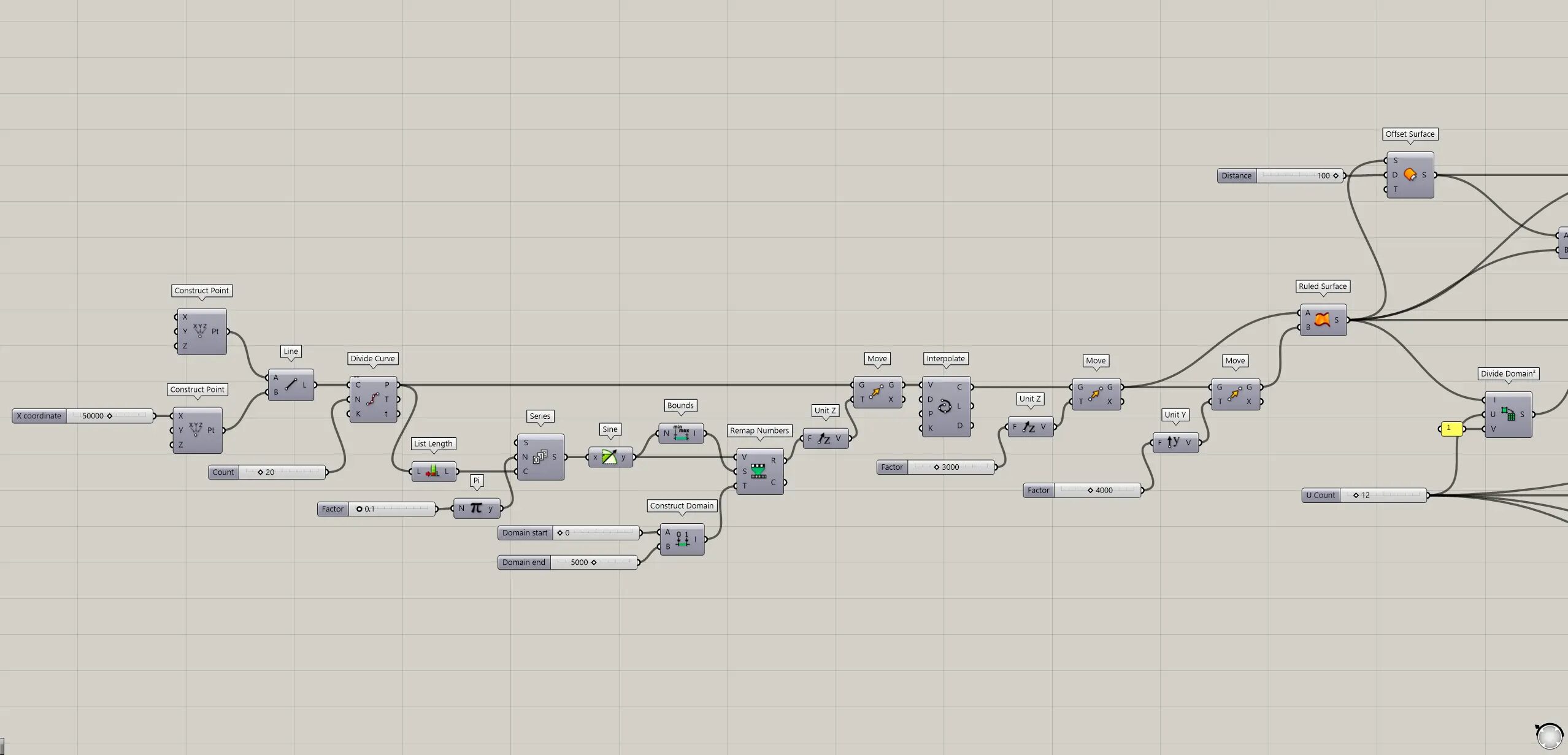

Therefore, we recommend that you look at the video, the Grasshopper recipe images placed below or download the data to check it out.

Click here to download the Grasshopper file

Please refer to the Terms of Use regarding the use of downloadable data.

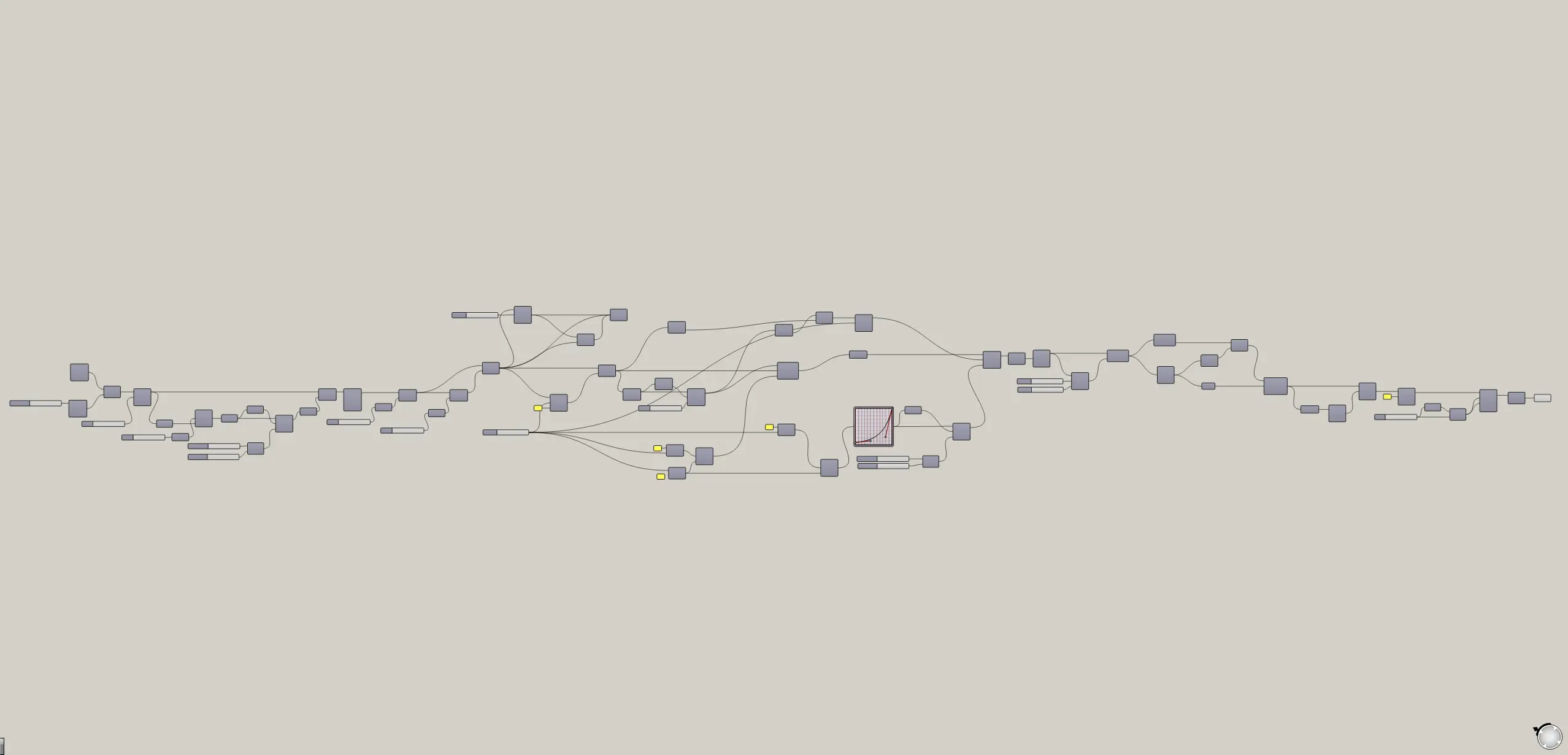

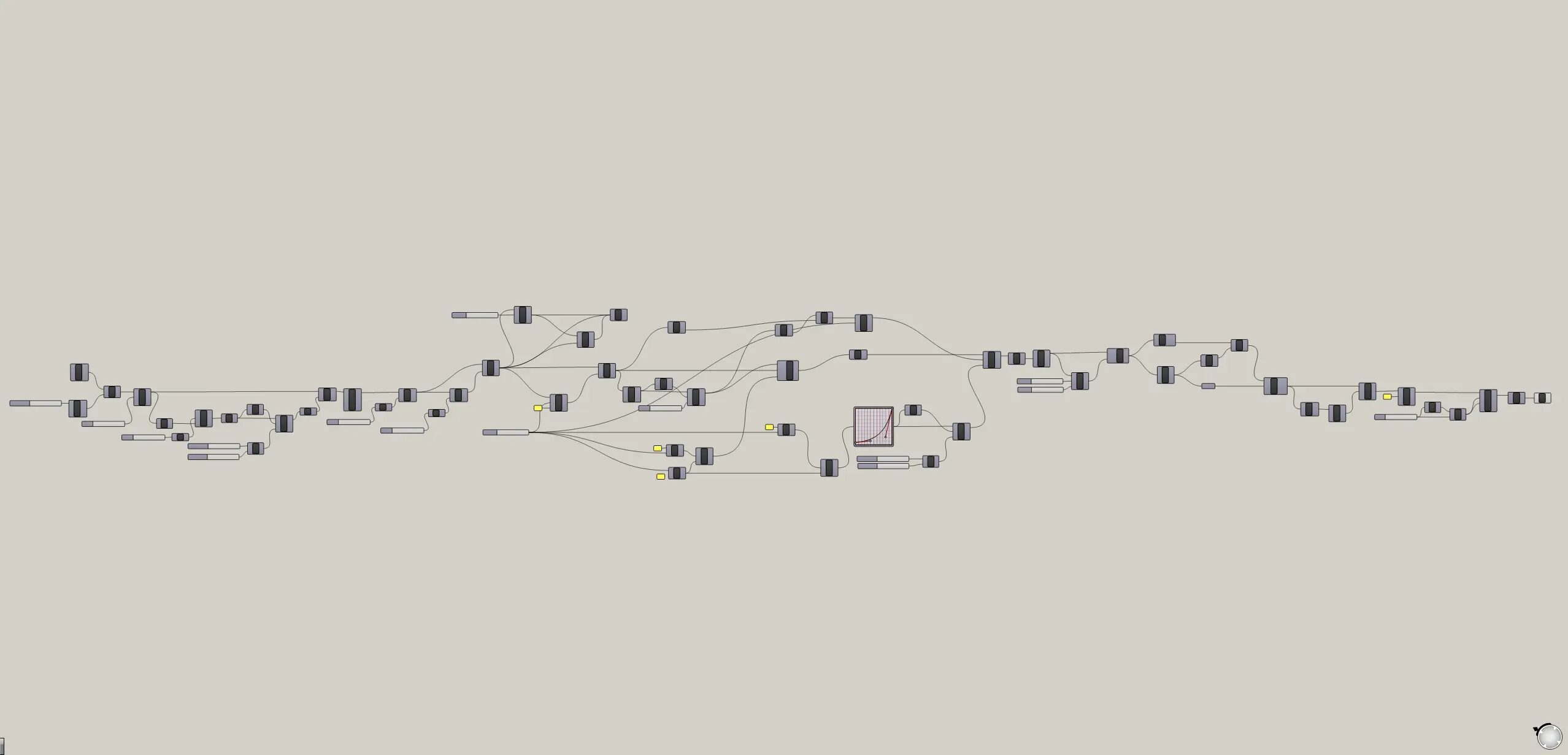

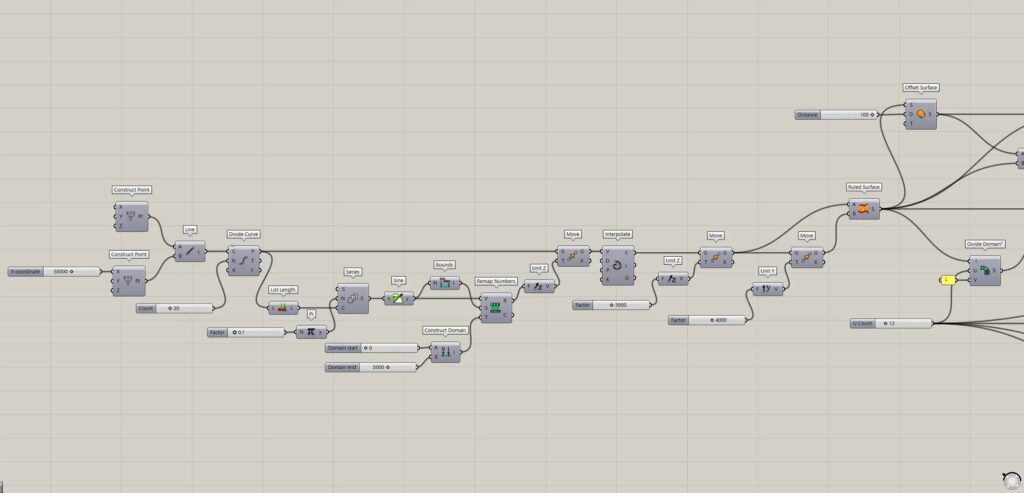

Grasshopper recipe

①Construct Point ②Line ③Divide Curve ④List Length ⑤Pi ⑥Series ⑦Sine ⑧Bounds ⑨Remap Numbers ⑩Construct Domain ⑪Unit Z ⑫Move ⑬Interpolate ⑭Ruled Surface ⑮Offset Surface ⑯Brep Join ⑰Divide Domain² ⑱Isotrim ⑲Area ⑳Project ㉑Scale ㉒Tween Curve ㉓Flip Matrix ㉔Division ㉕Addition ㉖Graph Mapper ㉗Loft ㉘Deconstruct Brep ㉙End Points ㉚Curve ㉛Merge ㉜Curve Middle ㉝Cull Duplicates ㉞List Item ㉟Perp Frames ㊱Negative ㊲Rectangle ㊳Cap Holes
