[Grasshopper] How to convert a model to Voronoi [Data download available]

grasshopper EN

In this article, we introduce how to convert a model to Voronoi in Grasshopper.


↑Youtube Channel

Model Image


The above 3 images show the overall shape of the model.

最終レンダリング

The images above show the final rendering.

For more details, please check the component images or download the data below.

Click here to download the Grasshopper file

Please refer to the Terms of Use regarding the use of downloadable data.

Grasshopper recipe

1: Brep 2: Box 3: Volume 4: Scale 5: Populate 3D 6: Voronoi 3D 7: Point In Breps 8: Dispatch

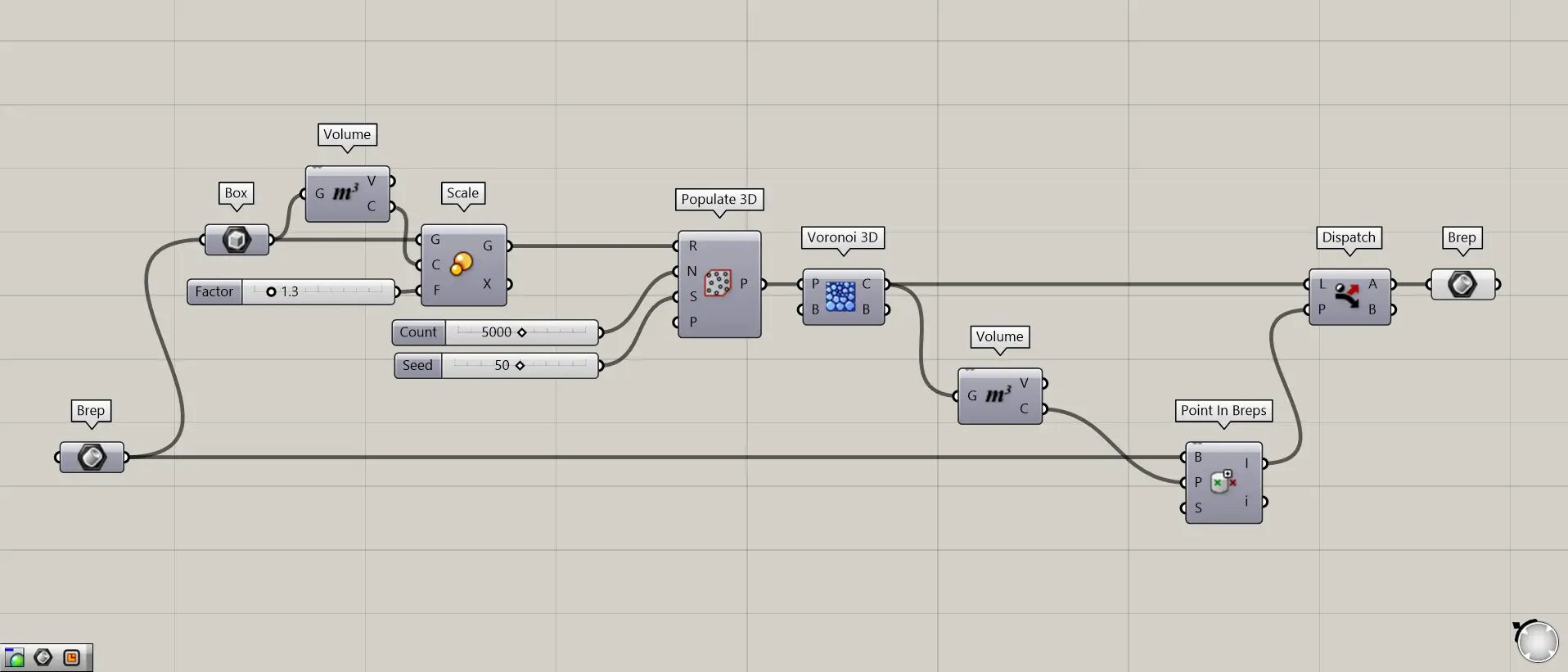

component1

Click to zoom

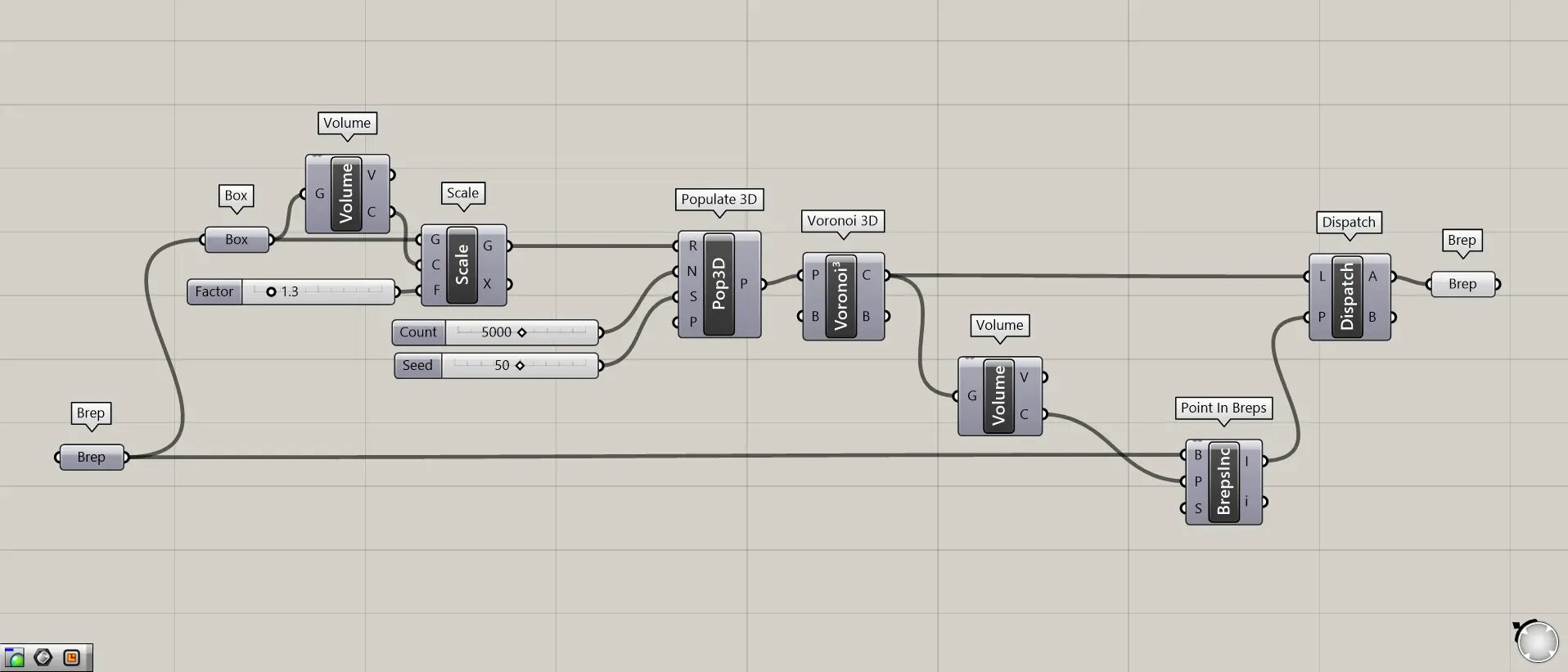

component2

Click to zoom
